Yuanchen high-efficiency catalyst carrier ceramic honeycomb thyristor catalyst

1.  Specification HoleNumber(PCS)Cross Section(mm)HoleDia.(mm)Wall Thickness(mm)Catalyst Pitch(mm)Open Porosity(%)Specific Surface Area(m2/m3)Applicable Scope15×15150×1508.451.359.8071.40338Coal fired unit, high smoke dust16×16150×1508.001.209.2072.8238318×18150×1507.101.108.2072.604

Featured Products

1.  Specification
Cross Section
Wall Thickness
Catalyst Pitch
Open Porosity
Specific Surface Area
Applicable Scope
15×15150×1508.451.359.8071.40338Coal fired unit, high smoke dust
18×18150×1507.101.108.2072.60409Coal fired unit, medium dust
21×21150×1506.100.957.0572.93478Coal fired unit, low smoke dust
25×25150×1505.000.905.9069.44577Coal fired unit, very low dust
30×30150×1504.100.804.9067.24693Oil fired unit, very low dust
40×40150×1503.200.503.7072.82910Natural gas fired unit
Unit catalyst size: 150×150×(length 300-1350) mm.

2. Introduction for SCR

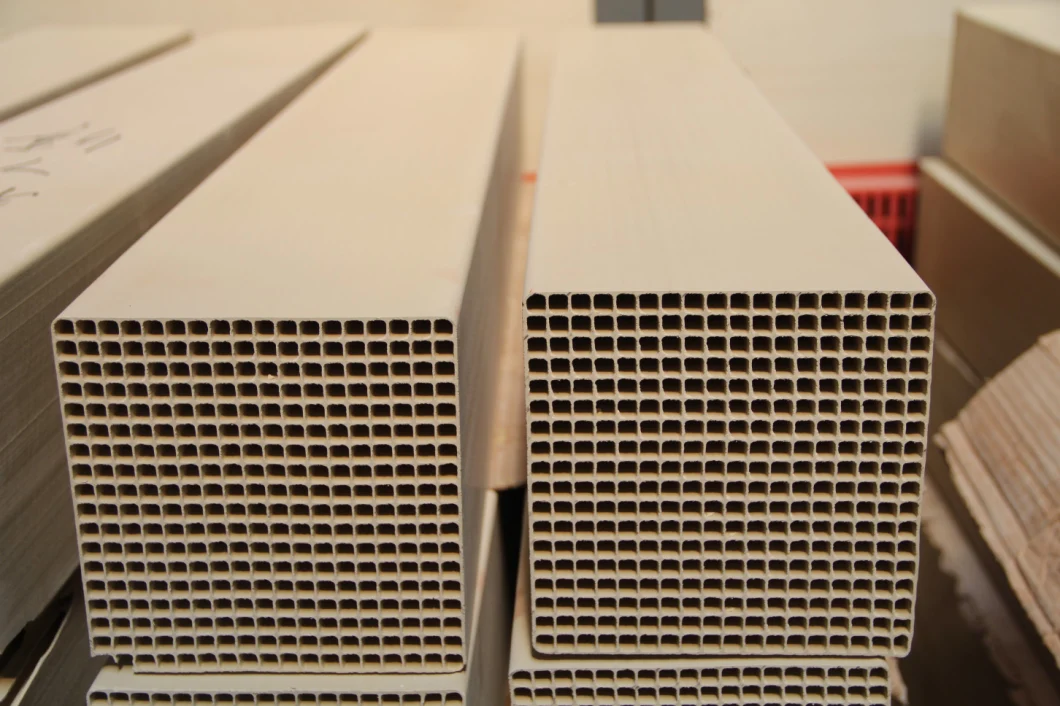

Yuanchen High Efficiency Catalyst Carrier Ceramic Honeycomb SCR Catalyst

Selective catalytic reduction (SCR) catalyst called SCR flue gas denitration catalyst, SCR technology is denitration catalyst in the appropriate temperature, using ammonia (NH3) as the reducing agent, take the advantage of the reducing agent selective, preferentially reaction with industrial flue gas of nitrogen oxide(NOX), NOX is converted into no pollution of nitrogen and water, and NOx reduction efficiency is as high as above 90%. Thereby reducing NOX emissions, and reducing smoke pollution to the environment. SCR denitration technology has become the mainstream technology of flue gas denitrification in the world. honeycomb ceramic monolith catalyst support

SCR technology is a reaction at use of the denitration catalyst at a certain temperature (270-400ºC),that NOX in the flue gas mixed with ammonia gas from the reducing agent supply system after the occurrence of the selective catalytic reduction reaction of nitrogen and water ,thereby reducing NOx emissions,and reducing smoke pollution to the environment .
Several reductants are currently used in SCR applications including anhydrous ammonia,aqueous ammonia(25%NH3)or use.Typical SCR system consist of anhydrous ammonia storage &transportation (using anhydrous ammonia as the reductant )evaporator ,AIG and mixer,flue gas system ,reactor and ammonia emergency management system .

 4NO+4NH3+O2→4N2+6H2O          2NO2+4NH3+O2→3N2+6H2O
Yuanchen High Efficiency Catalyst Carrier Ceramic Honeycomb SCR Catalyst

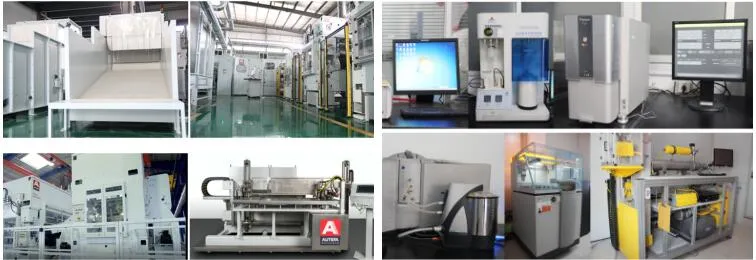

3. Company Introduction

Yuan Chen Environmental Science and Technology Co., Ltd, was founded in 1997, formerly known as the Shanghai Yuan Chen Environmental Protection Equipment Parts Co, Ltd. Anhui Yuan Chen Environmental Science and Technology Co., Ltd. Was established in 2005, is a national high-tech enterprise, specialize in manufacturing baghouse filter components for air pollution control. The main products are PTFE fiber, filter media, filter sleeves & bags, filter cages, honeycomb SCR catalyst, associated items and filter cleaning systems.

Yuan Chen S&T is always committed to scientific and technological development, focusing on research and development capabilities, Two eternal experts who enjoys the benefits of the state council, six senior engineers and eight master consist of our professional R&D team. 38 granted patents including 10 invention patents, four high-tech identified products.

Our products are widely used for environmental projects such as steel, cement, chemicals, power utilities, refuse incineration, construction, grain processing, wood, &tobacco etc. Our market includes all of China, and we also export to Germany, Russian, Japan, Korea, South America, Europe, South East Asia and many other regions and countries.

Yuanchen High Efficiency Catalyst Carrier Ceramic Honeycomb SCR Catalyst

Yuanchen High Efficiency Catalyst Carrier Ceramic Honeycomb SCR Catalyst


Q1. What is your terms of payment?
A: T/T will usually be accepted,details could be negotiated.

Q2. What is your terms of delivery?

Q3. How about your delivery time?
A: Generally, it will take 10 to 20 days upon downpayment.
The specific delivery time depends on your detailed requirements and the quantity of your order.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q5. What is your sample policy?
A: We could offer the sample for free charge but your esteemed company will bear the cost of freight.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% inner inspection in our own laboratory before delivery.

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them.
